57 LITERS 2 INCHES "SK PROFI COPPER 2.0" DISTILLER RECTIFICATION COLUMN

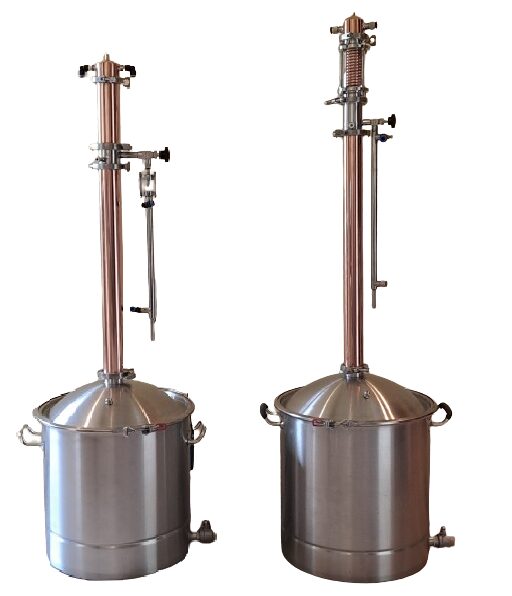

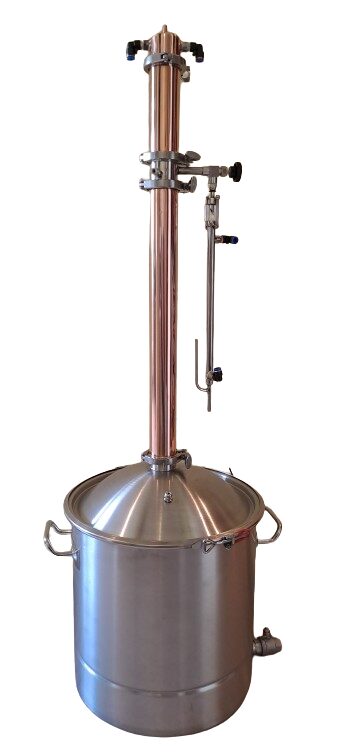

SK PROFI COPPER 2.0 Distiller – Copper 2 Inch Reflux Column with 57L Boiler

SK PROFI COPPER 2.0 is a professional distillation and rectification apparatus equipped with a 2-inch copper reflux column, copper main tube, a copper dismantlable Dimroth dephlegmator, selection unit with aftercooler and a 57-liter stainless steel boiler with a dome lid. Designed for precise separation of liquid mixtures based on different boiling points, this distiller ensures high purity and stable performance.

The distillation unit is suitable for:

• distillation of water and alcohol-containing liquids

• production of essential oils, hydrosols, and aromatic water

• distilling grain, fruit, and thick mashes

• home and professional use

❗ AISI-430 stainless steel is NOT used in any welded parts.

⭐ Key Advantages of SK PROFI COPPER 2.0

• 2″ copper column – effectively removes sulfur compounds

• Copper Dimroth dephlegmator with double spiral

• Liquid take-off unit with multi-point reflux distribution

• Dephlegmator utilization power up to 4 kW

• Dome lid reduces foaming and increases total volume

• Compatible with gas, electric, and induction cooktops

• Heating element (TEN) connection available

⭐ Standard SK PROFI COPPER 2.0 Configuration

• 2.0 clamp ferrule + silicone gasket - set

• Copper main tube 600 mm - 1 pc

• Main tube diameter - 51 mm

• Copper Dimroth dephlegmator (double coil) – 1 pc

• Liquid sampling (selection) unit with stainless steel control valve – 1 pc

• Product aftercooler with mini glass diopter – 1 pc

• Thermometer port + thermometer – 1 pc

• Quick-connect fittings – 4 pcs

• Plumbing kit (5 m polyurethane hose, adapters)

• Panchenkov copper mesh packing – 5 pcs

• 50-litre distillation cube with 7-litre dome lid

• Safety valve

• 3/4″ drain tap

• Heating element outlet with 2″ clamp and gasket

📌 Heating element with power regulator sold separately.
📌 2″ glass diopter — optional, sold separately.

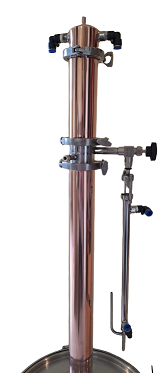

🔹 Column Specifications

• Materials: food-grade AISI-304 stainless steel and M1 copper

• Sampling (Take-off) type: liquid selection

• Dimroth wall thickness: 1.5 mm

• Maximum operating power: up to 4 kW

⭐ Specifications of the Main Components of SK PROFI COPPER 2.0

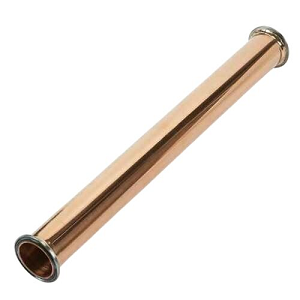

Main tube (tsarga) 2 inches

• Length: 600 mm

• Diameter: 51 mm

• Material: food-grade copper М1

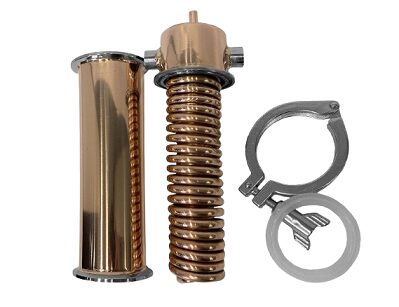

Copper Dimroth Dephlegmator (2″, Demountable)

• Material: M1 copper

• Cooling tube length: 4.3 m

• Tube diameter: 6 mm

• Assembled height: 22 cm

• Provides stable and efficient rectification

Liquid Selection Unit with Multi-Point Irrigation

The take-off unit features 9 independent reflux distribution points, ensuring:

• minimal wall effect

• uniform wetting of the packing

• improved heat and mass transfer

• higher column efficiency

• visual monitoring of the process

🔹 Tank Specifications:

• Total volume: 57 litres

• Cube volume: 50 litres

• Dome lid volume: 7 litres

• Recommended volume for distillation/rectification: 40 litres

• Bottom type: 3-layer sandwich (stainless steel / aluminum / magnetic stainless steel)

• Suitable for all cooktops, including induction

• Bottom thickness: 5 mm

• Wall thickness: 1 mm

• Lid thickness: 1.2 mm

• Diameter: 428 mm

• Internal volume markings

• Heating element (TEN) port included

🔌 Heating element with power regulator sold separately.

⭐ Expansion and Upgrade Options

• Copper conical lid

• Copper insert for increased copper contact

• Boiler volume magnifier (stainless steel or copper)

• Steam-water insert

• Cheese-making insert

• Brewing insert (mini brewery)

• Basket for malt and thick raw materials

🔶 Copper cone lid

Designed to eliminate unpleasant tastes and odors of sulfur compounds through contact with copper, and also works as a cube enlarger.

🔶 Copper insert

Designed to increase the contact area with copper. It is an excellent and more practical alternative to a copper tank. Contact with copper is doubled (due to the fact that the walls of the insert are washed on both sides). The insert is convenient to remove and wash.

🔶 Stainless steel tank magnifier

Allows to increase the volume of the distillation tank, it is completely sealed (fixed with a silicone seal and a stainless steel clamp).

🔶 Insert for cheese making

Allows to turn a distillation tank into a full-fledged home cheese factory-pasteurizer.

🔶 Steam-water insert

Allows to distill any type of mash, thick mash, fruit mash, etc. You can brew beer, distill grains, fruit mashes.

🔶 Brewing insert

Allows to use the tank as a mini-brewery.

🔶 Copper tank magnifier

Allows to increase the volume of the distillation tank, it is completely sealed (fixed with a silicone seal and a stainless steel clamp), eliminates unpleasant tastes and odors of sulfur compounds due to contact with copper.

🔶 Basket for malt and thick raw materials

A high-quality alternative to a false bottom. Protects the wort from burning (suitable for mashing wort, distilling thick raw materials, etc.).

These modules allow you to use the tank as a mini-brewery or mini-combine harvester to create any homemade drinks according to your recipe.

🇺🇦 Made in Ukraine
