42 LITERS DISTILLER "SK HYBRID 2.0", DISTILLATION APARATUS, COLUMN 2 INCHES

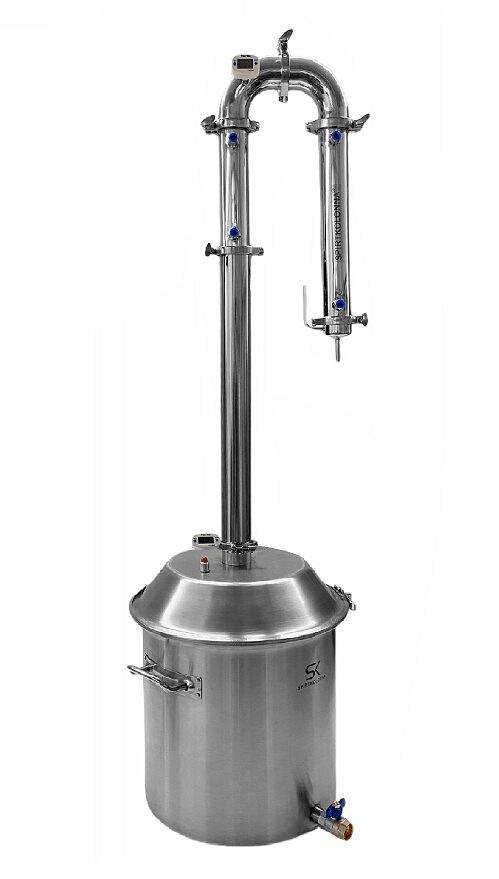

SK HYBRID 2.0 distiller – 2" reflux column with 42 L stainless steel boiler (thick 2 mm dome lid)
+ free Polyurethane insulating cover for the main column tube

The SK HYBRID 2.0 is a high-performance 2-inch mash and distillation column designed for efficient separation of liquid mixtures with different boiling points. Ideal for distilling water, spirituous liquids, hydrolats, essential oils, aromatic waters, and other liquids through evaporation and condensation.

This model uses only food-grade AISI-304 stainless steel.
AISI-430 steel is NOT used in welded components, guaranteeing durability, safety, and superior corrosion resistance.

Standard column configuration

• 2" clamp + silicone gaskets – 6 pcs.
• Main stainless steel column tube 500 mm – 1 pc.
• Quick-release fittings – 4 pcs.
• Shell-and-tube dephlegmator 200 mm – 1 pc.
• 90° angle pipes – 2 pcs.
• Nipple fitting – 1 pc.
• Shell-and-tube product condenser 350 mm – 1 pc.
• Output spout – 1 pc.
• Thermometer – 1 pc.
• Sanitary kit included.

Column specifications

• Food-grade, non-magnetic AISI-304 stainless steel.

• Efficient shell-and-tube dephlegmator (6 tubes, 12×1 mm) – 3 partitions.
• High-performance shell-and-tube cooler (6 tubes, 12×1 mm) – 5 partitions.
• Steam takeoff option.
• Heating power handling: up to 4 kW.

• Distillation output (pot still mode): up to 8 L/hour, depending on heat input.

• Wall thickness: 1.5 mm.

Package contents

1. Distillation cube 42 L – 1 pc.
2. Thick dome lid – 1 pc.
3. Safety valve – 1 pc.
4. 2" clamps + silicone gaskets – 6 pcs.
5. Main column tube 500 mm (Ø 51 mm) – 1 pc.
6. Quick-release fittings – 4 pcs.
7. Shell-and-tube dephlegmator 200 mm – 1 pc.
8. 90° angle pipes – 2 pcs.
9. Nipple fitting + thermometer – 2 pcs.
10. Shell-and-tube condenser 350 mm – 1 pc.
11. Output spout – 1 pc.
12. Lid clamp + silicone seal – 1 pc.
13. 3/4" drain tap – 1 pc.
+ Sanitary kit.

Distiller features Column

• Non-magnetic food-grade AISI-304 stainless steel.

• Powerful dephlegmator and condenser for maximum purification.
• Optional gin basket (sold separately).
• Optional liquid sampling unit (sold separately).
• High performance: up to 8 L/hour.

• Designed for stable operation with power up to 4 kW.

• Wall thickness: 1.5 mm.

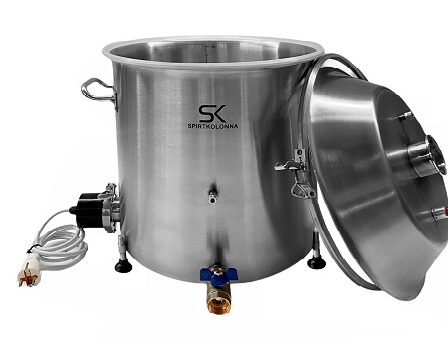

42 L distillation cube (tank)
Made from premium AISI-304 stainless steel, the 42 L tank features:

Tank specifications

• Food-grade AISI-304 stainless steel (non-magnetic).
• Sandwich bottom (stainless steel / aluminum / magnetic stainless steel).

• Fully compatible with all stoves, including induction.

• Bottom thickness: 5 mm.

• Wall thickness: 1 mm.

• Lid thickness: 2 mm.

• Diameter: 378 mm.

• Internal volume markings.
• Port for installing a heating element (sold separately).

Optional add-ons for expanded functionality

Copper cone lid
Improves flavor by binding sulfur compounds and increases tank volume.

Copper insert
Provides increased copper contact for cleaner distillates; easy to remove and clean. Contact with copper is doubled (due to the fact that the walls of the insert are washed on both sides). The insert is convenient to remove and wash.

Stainless tank magnifier
Expands tank volume; sealed with a silicone gasket and clamp. It is completely sealed (fixed with a silicone seal and a stainless steel clamp).

Cheese-making insert
Transforms the tank into a home cheese pasteurizer.

Steam-water insert
Perfect for thick or fruit mashes, beer brewing, grain distillation.

Brewing insert
Allows the cube to function as a mini-brewery.

Copper tank magnifier
Increases tank volume and removes sulfur off-flavors through copper contact. It is completely sealed (fixed with a silicone seal and a stainless steel clamp), eliminates unpleasant tastes and odors of sulfur compounds due to contact with copper.

Basket for malt and thick raw materials
A high-quality alternative to a false bottom. Prevents burning and improves processing of thick mashes.

Features of the 42-litre (37+5) cube with a thick (2 mm) dome lid:
Specialised professional distillation cube with a fully removable lid, equipped with a stainless steel clamp lock (clamp type connection), made of food-grade non-magnetic AISI-304 stainless steel.

• Reinforced 2 mm dome lid.
• Fully removable lid with clamp connection.
• Perfectly flat sandwich bottom ensures even heating.
• Litre markings inside.
• 3/4 drain tap.
• Option to install a heating element (sold separately).

Included components

• Safety valve - 1 pc.
• Connection for thermometer - 1 pc.
• Cover with outlet for 2" clamp - 1 pc.
• Lid clamp - 1 pc.
• Silicone gasket under the cover - 1 pc.
• Output for heating element + clamp + silicone gasket - 1 pc.
• Drain tap 3/4 - 1 pc.



Manufacturer: made in Ukraine
